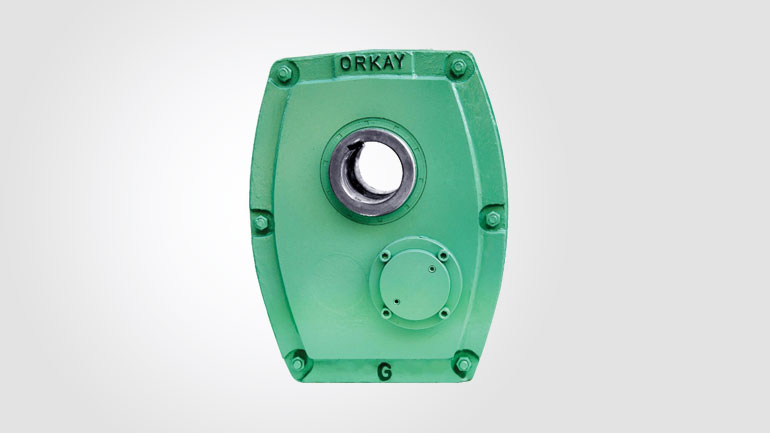

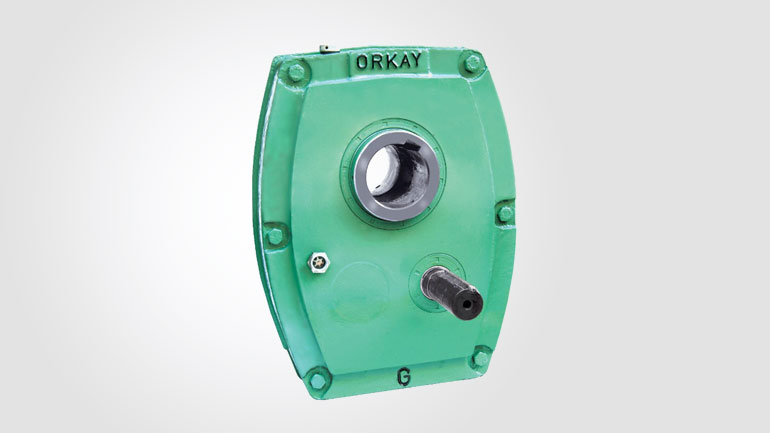

"HITESH" Shaft Mounted Speed Reducer are compact, totally enclosed and are designed for direct mounting on the drive shaft of the equipment to be driven. The direct mounting principle assures positive and permanent alignment of the Speed Reduce and the driven machine and permits convinient location of the motor, minimizing space requirements and layout problems. It also eliminates the foundations.

"HITESH" Shaft Mounted Speed Reducers offers unlimited installation flexibility, it is to be mounted with a tie-rod. "HITESH" Shaft Mounted Speed Reducers are designed to meet any position requirements and satisfy a wide range of output speeds and horse power requirements.

"HITESH" Speed Reducers consists of hardened precision - machined alloy steel Helical Gears mounted on micro finish Shafts supported on long life precision bearings with the capacity to handle maximum loading. The two - peice close Grain C.I. housing provides sturdy support and insures permanent accurate alignment of all components.

"HITESH" Shaft Mounted Speed Reducers is metric in design and AGMA Standards have been adopted wherever required "HITESH" Speed Reducers is manufactured in 6 different sizes and have Gear Ratios of 5:1, 13:1 and 20:1





Size A std
hub
bored
C D E Input
shaft
keyway
F G H
max
min
J K L M N Appeoximate
Mass kg
05 13-20
Ratio Ratios
AO 115 30 50 63 14j6 5x3x48 96 200 600 750 160 207 66 24 70 11 13
BO 135 30 60 78 16h7 5x3x50 105 200 600 750 185 225 75 25 79 17 19
CO 145 40 68 88 22h7 6x3.5x65 110 200 600 750 218 269 90 31 95 21 25
DO 154 50 72 96 25h7 8x4x65 118 216 700 850 253 325 110 37 116 32 36
EO 166 55 85 115 28h7 8x4x70 130 216 700 850 280 378 125 43 133 43 52
FO 192 65 90 130 32h7 10x5x85 150 216 700 850 324 414 141 50 150 55 68
GO 211 75 105 145 42h7 12x5x90 171 216 750 900 369 468 156 56 166 102 109
HO 243 85 116 170 48h7 14x55x100 189 222 750 900 435 549 189 62 200 135 165
JO 258 100 135 200 55h7 16x6x110 198 222 750 900 543 702 255 75 266 195 225
KO 325 125 186 218 60h7 18x7x170 265 222 750 900 645 840 280 100 297 400 456
